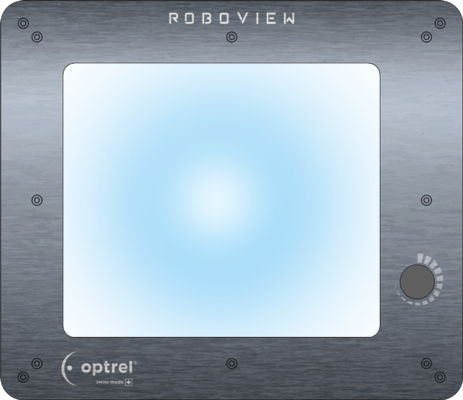

Optrel RoboView, Welding Window for Robot Cells (5050.000)

Optrel RoboView, Welding Window for Robot Cells - 5050.000

by Optrel
Save $141.47 Save $141.47
$2,829.49
$2,829.49 - $2,829.49
$2,829.49
$2,688.02
$2,688.02 - $2,688.02
$2,688.02
SKU 5050.000

⚠️WARNING: Cancer and Reproductive Harm

www.p65warnings.ca.gov

Ships in 3-5 business days.

Clear Visibility for Precise Welding Process Monitoring

In automated welding systems, real-time monitoring is crucial for quality control and efficiency. The RoboView anti-glare window provides an unobstructed view of robotic welding—before, during, and after the welding process.

With automatic darkening during welding and a clear view when inactive, operators can effortlessly inspect weld seams, robot movement, and process details without delays. The stepless brightness adjustment allows fine-tuned visibility, ensuring optimal process control at all times.

How RoboView Works

  • Auto-Darkening Technology – The window automatically darkens when the welding robot is active and returns to light state when idle.
  • Seamless Robot Integration – Works with the robot controller or PLC, eliminating the need for manual adjustments.
  • Large Viewing Area (28 x 24 cm) – Provides a wide field of vision for enhanced weld monitoring and process optimization.

Why Choose RoboView?

  • Improved Welding Quality – Monitor and adjust in real time to reduce defects and rejects.
  • Increased Efficiency – Continuous visibility enables faster inspections and better workflow management.
  • Hands-Free Operation – Fully automated darkening and clearing for effortless monitoring.
  • Customizable Light Transmission – Stepless control allows for precise brightness adjustments.
  • UV/IR Protection – Built-in filters shield users from harmful radiation, ensuring safe observation.

Ideal for Robotic Welding Cells

RoboView is specifically designed for robotic welding applications, offering active glare protection without relying on optical arc detection. It integrates seamlessly into automated welding cells, allowing for real-time weld inspection and process improvement—all from a safe distance.

Note: RoboView is not classified as personal protective equipment (PPE) under EU Directive 2016/425.

Specifications

  • Brand: Optrel
  • Part number: 5050.000
  • EAN/GTIN: 7640429872654
  • Light state shade: 3.0
  • Dark state shades (manual): 3 – 12
  • Field of view size: 28 x 24 cm
  • Weight: ca. 2800 g / 98.8 oz
  • Frame material: rostfreier Stahl
