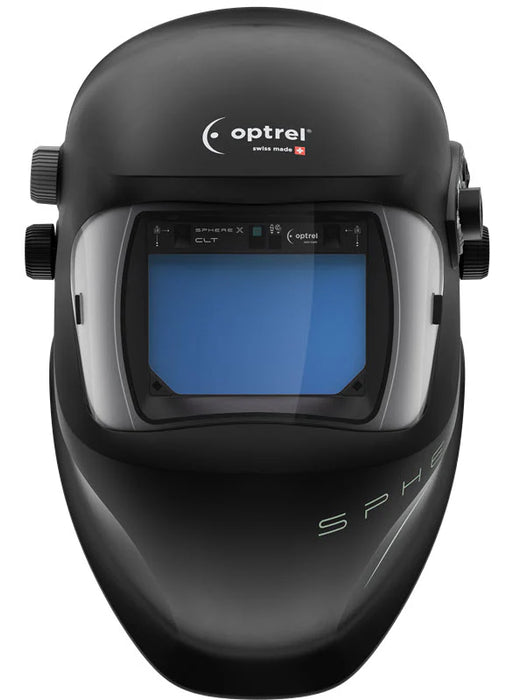

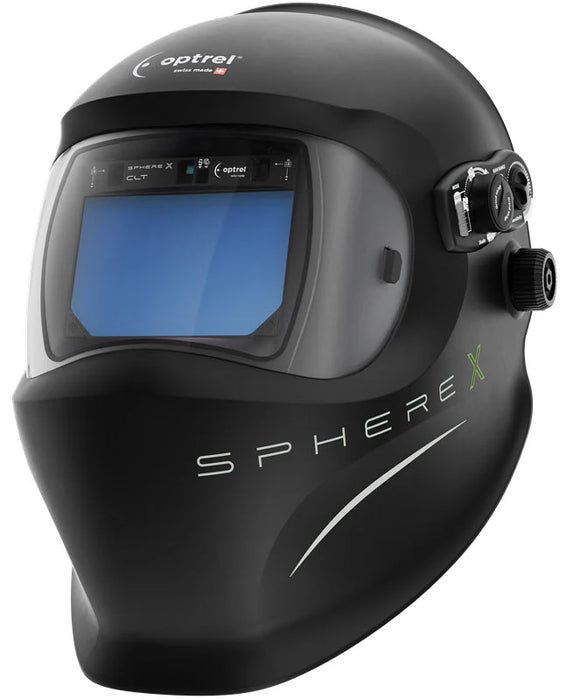

The welding helmet of the next generation is here – developed for perfect results, the Sphere X CLT is your view into infinity.
The Sphere X CLT offers vision like you’re in daylight – even in the lowest ampere range. Ideal for delicate seams and the highest demands. The Sphere X CLT welding helmet comes with variable shade 2/5-12 and ShadeTronic® function, manual mode, CLT (Crystal Lens Technology), opening delay with FadeTronic function, true colour view, sensitivity adjustment, grind function and IsoFit® X headgear.
- 30% Larger Field of View + CLT 2.0 – true color, high contrast, and crystal-clear vision before, during & after welding
- Perfect for stainless steel, aluminum and thin sheet metal
- Minimal color distortion, highest level of detail
All Sphere X welding helmets come with the revolutionary IsoFit® headgear. IsoFit is the only welding headgear in the world that wraps the entire crown of the head with multiple touch points to provide a custom fit like never before. Independent "three dimensional" size, width and height adjustments ensure all day comfort with a secure hold. The Isofit's Position Locker keeps your Sphere X welding hood securely in place, whether in the up or down position.
The Sphere X CLT has five arc sensors, for the ultimate in welding arc detection. It scores a perfect 1 rating for optical class, scattered light and homogeneity. The Sphere X CLT has external controls to switch quickly and easily from weld to grind mode and back again. Delay and sensitivity can also be controlled using the external knobs.
Features
-
Over 30% Larger Field of Vision
A full 10.2 square inches of viewing area. This larger view is combined with Crystal Lens Technology (CLT) for a perfect viewing experience in every situation.
-
CRYSTAL LENS TECHNOLOGY 2.0
Shade 2.0 light state provides the brightest view of your working environment available anywhere. The natural color and clear optics supplied by CLT increases both safety and efficiency in the workplace.
-
SHADETRONIC®
Detection of the arc brightness and fully automated shade level adjustment from 5 to 12. Adjusts automatically to the changing light conditions of the current welding method. A sophisticated SHADETRONIC® sensor continuously measures the light intensity of the welding arc and regulates the glare protection progressively and fully automatically. Shade adjustments can also be made manually between shades 4-8 and 8-12.
-
FADETRONIC
Patented Optrel FadeTronic technology gradually lightens the auto darkening filter after the welding arc is extinguished. The unpleasant afterglow is faded out especially for high amperage applications. Eye fatigue is significantly reduced, enhancing worker safety. FADETRONIC can be adjusted for a custom user experience.
-
TRUE COLOR
A specially developed UV/IR filter allows the realistic color perception typical of Optrel®, bringing color to the welder's world. TRUE COLOR passes more colors of the spectrum through compared to standard "green" spectrum welding lenses.
-
Intelligent sensor control with five arc sensors.
Sophisticated software and clever positioning of four arc sensors at the corners and one sensor in the upper center ensures the lens is switched on and off perfectly, even in the most difficult lighting conditions or in awkward positions.
-
IsoFit® headgear sets a new standard of wearing comfort. It is the only product worldwide that can be adjusted in width, length and height i.e. three-dimensionally to any head shape, so that the helmet really fits "like a glove."
-
Sensitivity Adjustment
Allows operator to change lens switching sensitivity for varying ambient light conditions or outdoor welding in sunlight.
-
Grinding Mode
External grind control allows user to switch between welding mode and shade 2 grinding mode quickly and easily.
-
The smoke-repellent helmet shell design
Protects your health even better against harmful substances and always gives you a clear view. For higher quality work with fewer errors.
Comes complete with
- Helmet bag
- 2+1 warranty
